1.15.  Examples of graphics with primitives

(* Broken line in the plane defined by the boundary points of its segments *) linia1 = Line[& ... , 3}, {-1, 5}, {2, 2} } ] ; <br /> g2 = Show[Graphics[linia1]] <br /> Show[ g2, Axes -> True]

[Graphics:../HTMLFiles/index_93.gif]

[Graphics:../HTMLFiles/index_94.gif]

(* Rectangle defined by its dots *) rec = Graphics[   {Rectangle[{1, -1}, {2, -0.3}] }   ] ; <br /> g3 = Show[rec, AspectRatio -> 1]

[Graphics:../HTMLFiles/index_96.gif]

(* Polygon for n = 5 (pentagon) *) pet1 = Table[{Sin[2 π * n/5.],    Cos[2 π * n/5.] } , {n, 5}] ; <br /> d5 = Graphics[Polygon[pet1]] ; Show[d5, AspectRatio -> 1]

[Graphics:../HTMLFiles/index_98.gif]

(* Displayng the three primitives in the same graphics *) Show[g2, rec, d5, AspectRatio -> Automatic]

[Graphics:../HTMLFiles/index_100.gif]

(* Polygon for n = 11 *) pet2 = Table[{Sin[2 π * n/11.],    Cos[2 π * n/11.] } , {n, 11}] ; <br /> Show[Graphics[Polygon[pet2]], AspectRatio -> Automatic]

[Graphics:../HTMLFiles/index_102.gif]

(* Circle defined by the center in {1, 6} and radius 4 *) (* The default ratio of y/x in Mathematica is the GoldenRatio = 0.618 *) s1 = Graphics[Circle[ {1, 6} , 4 ]] ; <br /> Show[s1]

[Graphics:../HTMLFiles/index_104.gif]

(* Disk defined by the co - ordinates of its center and radius *) s2 = Graphics[ Disk[   {2, 7}, 4 ]] ; <br /> Show[s2]

[Graphics:../HTMLFiles/index_106.gif]

(* Combined graphics of the upper circle and the disk at ratio y/x = 1 *) Show[s1, s2, AspectRatio -> 1]

[Graphics:../HTMLFiles/index_108.gif]

(* Broken line in the 3 D space defined by its vertices *) points = { {1, 0, 2}, {5, 7, -1}, {-2, -3, -4}, {1, 4, 9}} ; k1 = Line[ points ] ; <br /> g6 = Show[Graphics3D[ k1]]

[Graphics:../HTMLFiles/index_110.gif]

(* 3 D polygon of the previous example *) poli = Polygon[   points] ; <br /> g7 = Show[Graphics3D[poli]]

[Graphics:../HTMLFiles/index_112.gif]

(* Graphics of a parallelipiped defined by two opposite vertices *) cu1 = Cuboid[{0, -2, 3}, {3, 4, 5}] <br /> g8 = Show[Graphics3D[cu1]]

[Graphics:../HTMLFiles/index_114.gif]

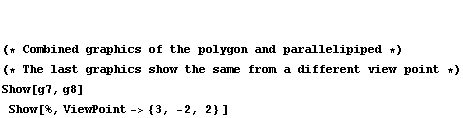

(* Combined graphics of the polygon and parallelipiped *) (* The last graphics show the same from a different view point *) Show[g7, g8] Show[%, ViewPoint -> {3, -2, 2} ]

[Graphics:../HTMLFiles/index_116.gif]

[Graphics:../HTMLFiles/index_117.gif]
